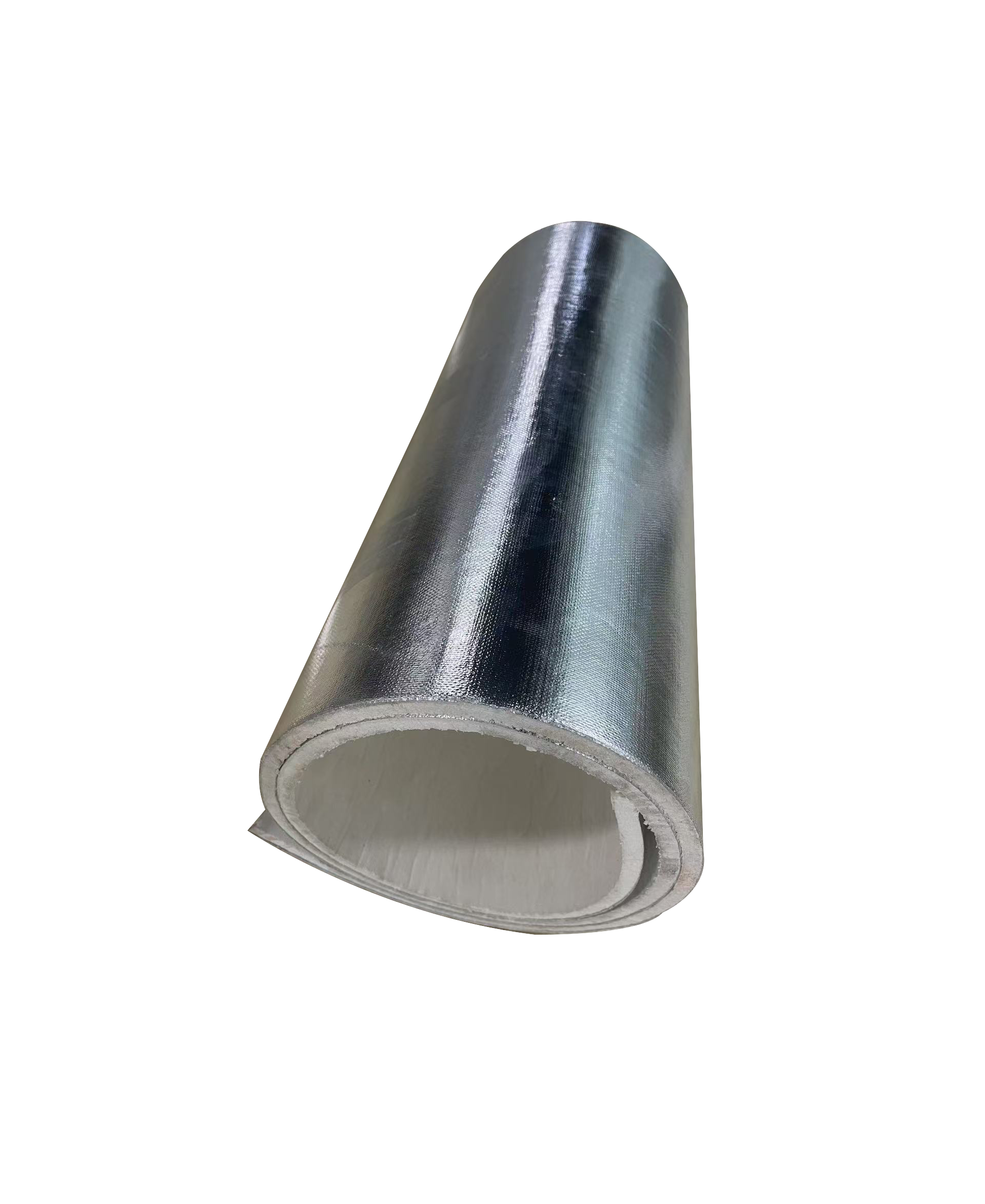

Endothermic Mat- With aluminum foil

Absorb heat

Release chemically-bound water

1-4hours fire protection for steel

1-4hours fire proof for cable tray

1-4hours fire protection for electrical circuity

ET-MAT Endothermic Mat is a flexible, high-performance fire protection solution engineered to absorb heat and release chemically-bound water when exposed to high temperatures. This reaction cools protected surfaces and delays heat transfer, giving critical infrastructure additional time during fire events. With its lightweight yet durable design, ET-MAT is easy to cut, shape, and install around complex geometries, offering versatile protection for both new installations and retrofit applications.

Key Features

Technical characters of endothermic mat

•Superior Fire Protection – Provides 1-4hours protection for structural steel, electrical circuits, and wall penetrations from standard fires per ASTM E119 (UL263)

•Heat Absorption Technology – Releases chemically-bound water to reduce heat transfer.

•Flexible & Easy to Install – Simple cutting and fitting, even around irregular shapes.

•Low Smoke & Non-Flame Supporting – Enhances fire safety in sensitive environments.

•Non-Corrosive & Durable – Suitable for long-term use in industrial and commercial facilities.

Applications

ET-MAT is designed for diverse fire protection needs, including:

• Structural steel framing

• Electrical cables, trays, and conduits

• Electrical circuity, Control panels and utility boxes

• Equipment shrouds and enclosures

• Penetration firestop in walls and ceilings

• Retrofit protection for existing infrastructure

• Lithium-ion battery pack fire protection

Data sheet

Product form: With aluminum/stainless steel foil / without foil

Classify temperature ℃: 1260

Long time working temperature ℃ : 1150

Density (kg/m3): 200-800

Heat loss ( WT%): 28~35%

Thickness: 3mm,5mm, 10mm,13mm

Form: Roll

Length: 6.1m /roll

Width : 610mm or 1220mm

Q&A

Q: How does ET-MAT protect against fire?

A: When exposed to extreme heat, ET-MAT releases water vapor that cools protected surfaces, delaying heat transfer and extending fire resistance.

Q: Can ET-MAT be installed on complex shapes?

A: Yes. Its flexible structure allows easy installation around corners, bends, and irregular components.

Q: Is ET-MAT suitable for retrofitting?

A: Absolutely. ET-MAT can be applied to both new installations and existing systems, offering quick upgrades in fire protection.

Q: Does ET-MAT produce smoke or flames during fire exposure?

A: No. It is non-flame supporting and produces minimal smoke, ensuring safer environments.

Q: What industries benefit most from ET-MAT?

A: Power plants, data centers, telecommunications, oil & gas facilities, EV Cars and commercial buildings.

Q: Which kind of foil can be laminated onET-MAT

Foil and stainless steel foil

Product forms	With aluminum foil	Without foil
Classify temperature ℃	1260	1260
Long term working temperature ℃	1150	1150
Density kg/m3	200-800
Heat loss ( WT%)	28% -35%
Thickness	1-3mm (foil)	3-10mm
Length	6.1m/roll	6.1m/roll
Width	610mm or 1220mm
