Temperature up to 1260℃
Auwin LiB Series microporous nanomaterial thermal insulation products
are lightweight, flame-retardant, and electrically insulating materials
designed to enhance the safety of lithium-ion battery packs. LiB series microporous
products feature nano fibers and special ceramic fibers, offering overall cost
advantages. It has a unique microporous nanostructure with numerous 5-100nm
nanopores and bands within a single particle structure. Due to the disordered
structure of the nanopores/bands and material porosity, these materials have
improved radiation resistance and effectively lower thermal conductivity.
|
Model |
LiB FS1000-PP |
|
Classify temperature ℃ |
1260 |
|
Long term working temperature ℃ |
1000 |
|
Color |
grey |
|
Density kg/m3 |
280-400 |
|
LOI (% wt) |
6% |
|
Tensile Strength（PSI） |
135 |
|
Heat Absorption Characteristics |
Yes |
|
Fiber Index |
90 |
|
Thermal Conductivity |
Average W/m-k |
|
25 ℃ |
0.03 |
|
100℃ |
0.03 |
|
300℃ |
0.035 |
|
500℃ |
0.05 |
|
Chemical components |
SiO2 35-50%, Al2O3 40-60% , SiC 0-15%,others 5-10% |
|
Standard thickness |
1-10mm
|
|
Standard width & length |
600,1000,1200 or Customized |
Technical Advantages:
Temperature range: -950 to 1100°C
Ultra-low thermal conductivity: <0.03 (at 500°C)
Temperature resistance up to 1430°C
Thermal conductivity in high-temperature states significantly surpasses that of aerogels
Low specific heat, minimal heat storage, excellent thermal shock resistance
Class A fireproof, asbestos-free, and formaldehyde-free
Optional high-pressure insulation or waterproof coating

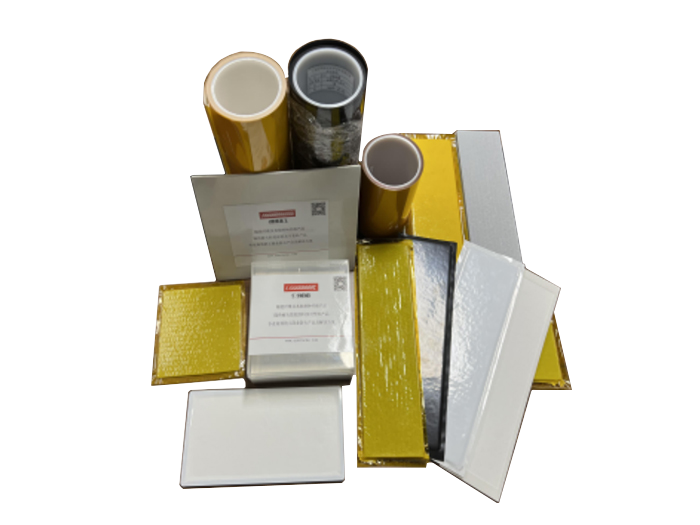

Company can provide customized fire proof and thermal insulation gaskets/paper/met for lithium battery packs based on customer needs. These include options such as PE film thermal insulation gaskets with silicone frames, PI film thermal insulation gaskets without silicone frames, and composite nanomaterial thermal insulation gaskets incorporating phase-change heat absorption., and different size of paper/met according to customizer’s requirements.
These materials offer features such as fire resistance, flame retardancy, thermal insulation, UL94-VO certification, flexibility, cuttable properties, good rebound resilience, low thermal conductivity, thermal shock resistance, and insulation.
Lithium battery packs
Aerospace aircraft
Energy storage cabinets
Power supply systems
