Ceramic based Aerogel

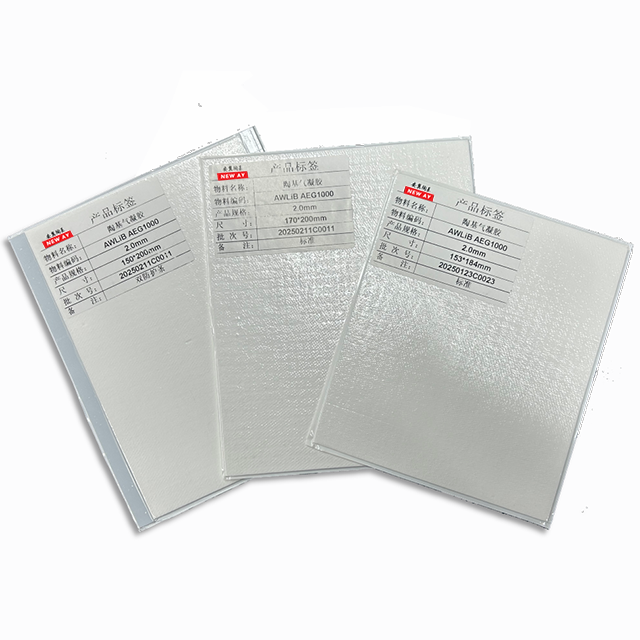

The latest products from AY New materials --- AW LiB AEG1000 CeramiFlex
is
manufactured using special fiber cotton and porous ceramic materials. It adopts
a proprietary formula based on the full - gradation gradient compounding
technology and combines the in - situ aerogel generation technology.

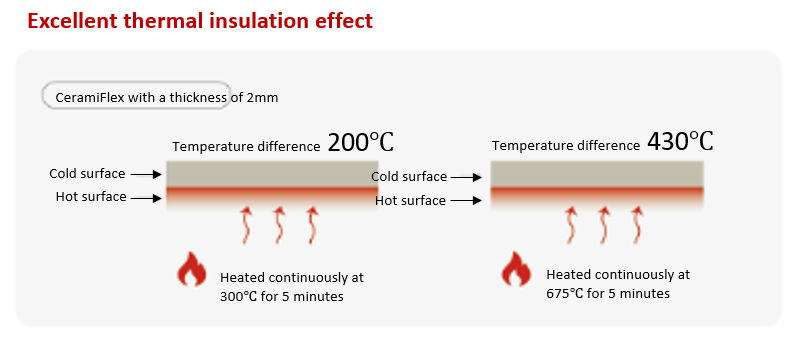

The product features excellent thermal insulation, high - temperature resistance, and anti - burn - through properties. It can also prevent the penetration of high - temperature ejecta from thermal runaway, providing better protection for battery cells and battery packs and other high temperature passive fire proof applications.
CONTACT US FOR A FREE SAMPLE RIGHT NOW!
High temperature 1260℃ /1430℃ Aerogel
Stress-strain Curve ---------------20-35% @ 1Mpa; 30-45% @ 2Mpa
Refractoriness，℃----------1260(GB/T 16400)
Color----------------White
Density，kg/m³--------250-350
Compressive Strength Mpa---------------0.4(GB/T 13480)
Tensile Strength（PSI）--------------≥120
Thermal Conductivity--------------------------Average Thermal Conductivity W/(m·K)
25℃----------------------------------0.025
100℃-------------------------------0.030
300℃-------------------------------0.042
500℃-------------------------------0.060
Chemical Composition------------------SiO2 35-50%; Al2O3 40-60%; Others 5-10%
Standard Dimension (Thickness)-------------------1-10mm
Standard Dimension (Width)-----------------------Customize

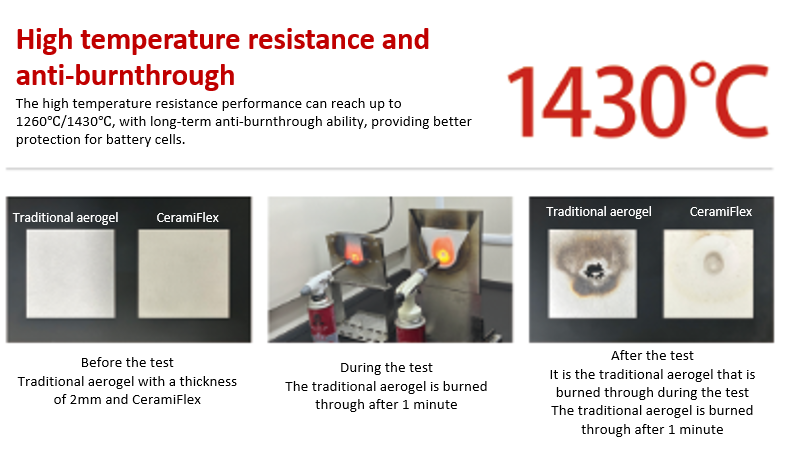

High temperature resistance and anti-burnthrough
The high temperature resistance performance can reach up to 1260℃/1430℃, with long-term anti-burnthrough ability, providing better protection for battery cells.
Good compression performance
As a buffer material used between battery cells, it can adapt to the expansion and contraction changes of battery cells during the charging and discharging processes.
Easy to process
Available in variable thicknesses (customizable) and cut-to-size configurations for tailored application solutions
Lithium-ion battery pack insulation
BESS cabinet inner insulation
Replace of aerogel with high temperature resistance
