AUWIN CMC
Ceramic fiber board
Auwin Frax series fire resistant ceramic fiber
boards are manufactured in a vacuum forming wet process by using ceramic bulk
fiber and colloidal binder.
They are based on Ultra Low Shot technology
and deliver the highest thermal and mechanical performance in the most
demanding high temperature applications.
Ceramic fiber boards offer you excellent passive fire insulating performance, easy installation, and excellent energy saving. This complete range of insulation boards consists of various types with different dimensions and densities.

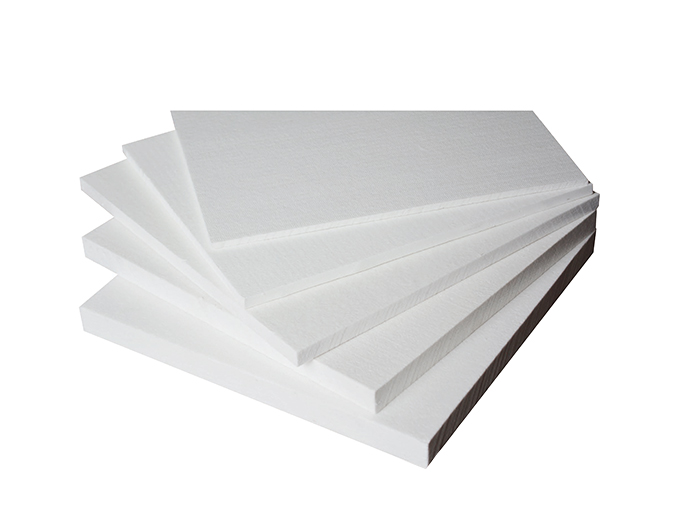

Ceramic fiber board - Frax 1260-BD
|
Model |
Frax 1260-BD |
|
Classify Temperature ℃ |
1260 |
|
Melting point ℃ |
1760 |
|
Color |
white |
|
Working temperature ℃ |
1100 |
|
Heating linear shrinkage % |
1100 ℃*24h<3 |
|
Thermal
conductivity W/m*k |
0.16 (600℃), 0.23 (800℃),0.33
(1000℃) |
|
Density kg/m3 |
300±80 |
|
Thickness mm |
10,13,25,38,50 |
|
Dimension mm (L*W) |
1000 or 600*600 |
|
Chemical composition |
|
|
Al2O3 |
40-44% |
|
Al2O3 +SiO2 |
95-98% |
Lightweight, easy to install and
maintenance
Excellent thermal performance and stability
Low conductivity and heat storage
Superior handling strength,
Low shrinkage,
Resistant to thermal shock,
Can be used in direct contact with flames

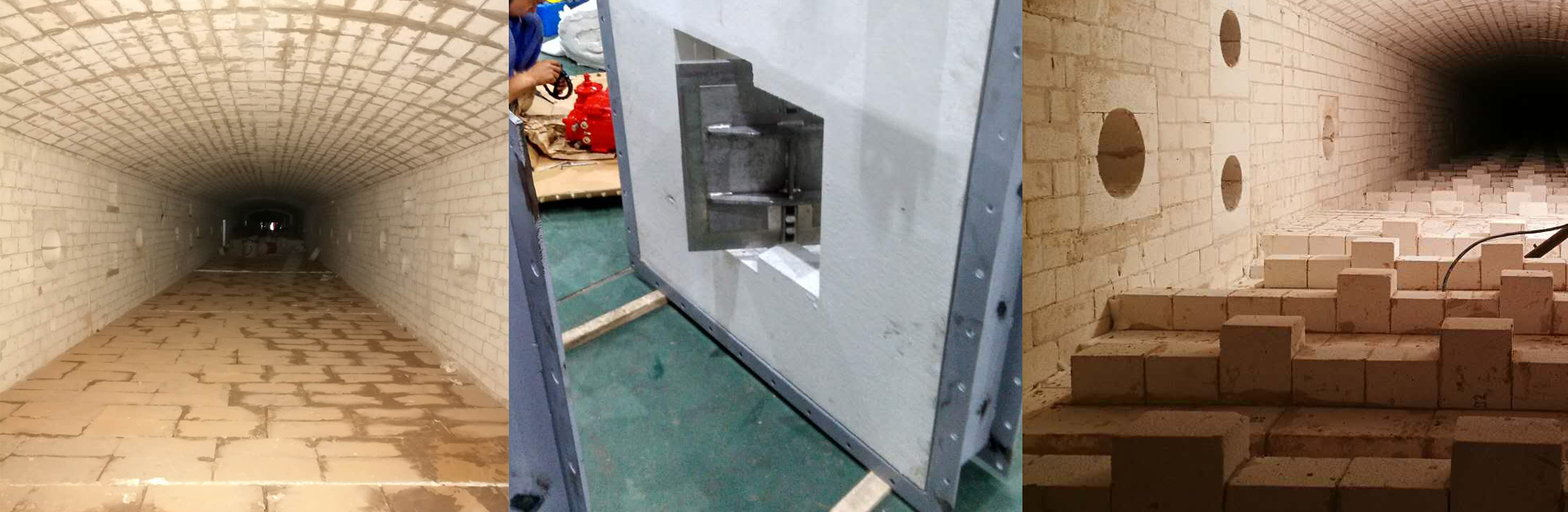

Furnace-related linings
High temperature back-up insulation,
Rigid gasket and seals
Insulation for domestic appliance
Combustion chamber for boilers and heaters
Other passive fire insulation scenarios
