AUWIN CMC
Flexible Ceramic Fiber Felt-Frax 1430Z-FT
Strong,
flexible, and stretch-resistant
High-purity material for extended lifespan
Ideal for applications requiring flexible fitting and sealing

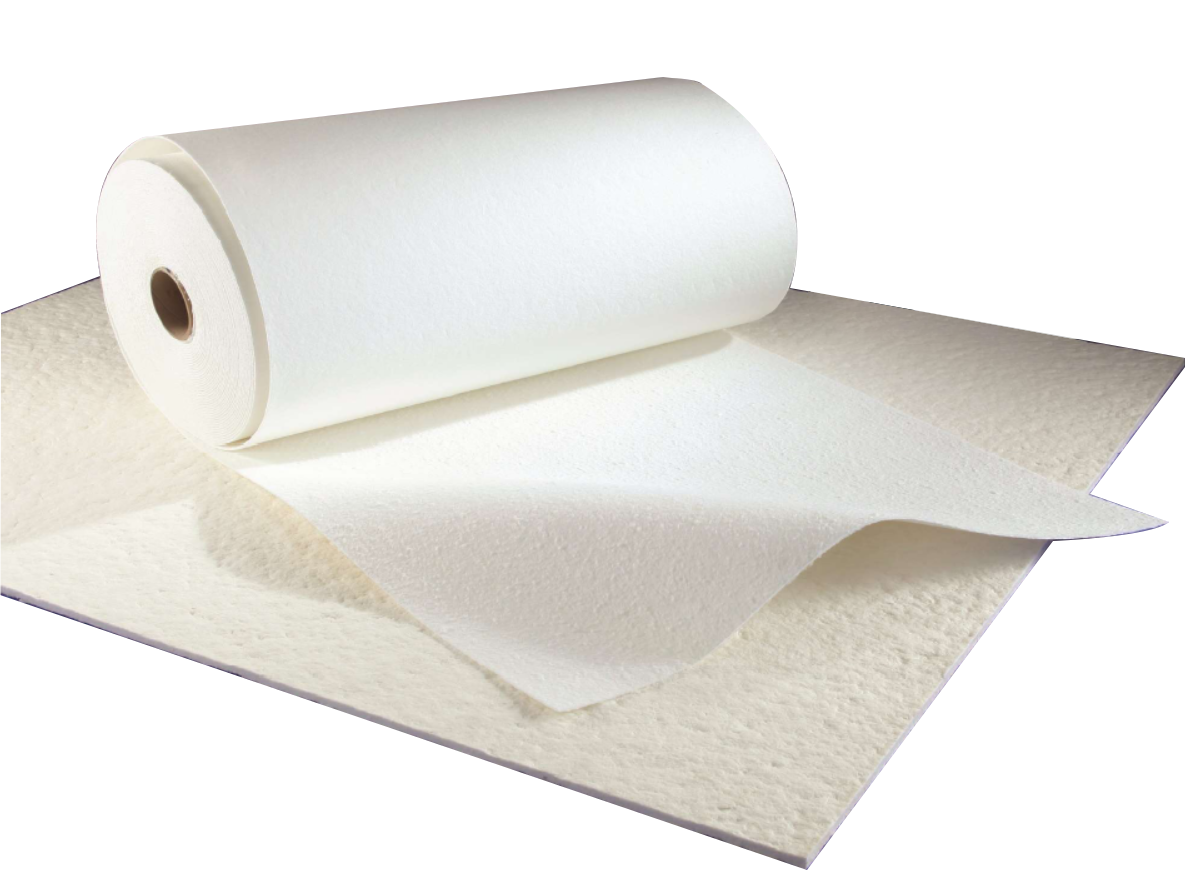

Auwin FRAX ceramic fiber felt is a premium flexible refractory material made from high-purity ceramic fiber wool and carefully selected binders. Using advanced production technology, this flexible insulation offers excellent tensile strength, low thermal conductivity, and stable high-temperature performance.
Frax 1430Z-FT is a zirconia-enriched ceramic fiber felt designed for ultra-high-temperature applications. With a continuous working temperature of 1350 ℃ and superior thermal stability, it is the perfect choice for demanding furnace and sealing applications.
Features:
• Ultra-High Temperature Resistance: Classification temperature 1430 ℃; continuous use up to 1350 ℃.
• Zirconia-Enriched Formula: Al₂O₃ + SiO₂ + ZrO₂ ≥95% for outstanding high-temperature stability.
• Low Shrinkage: ≤4% linear shrinkage after 24h at classification temperature.
• Excellent Thermal Performance: Thermal conductivity 0.15 W/m·K at 800 ℃, 0.21 W/m·K at 1000 ℃.
• Superior Durability: Strong tensile strength combined with flexibility for long service life.
Data Sheet
Name Frax 1430Z-FT ( with Zr)
Classify temperature ℃ 1430
Long time working temperature ℃ 1350
Density kg/m3 180-250
Heat loss ( WT%) ≤10
Linear Shrinkage Rate ≤4
(after 24 hours at classification temperature)
Tensile Strength (kPa) ≥170
Chemical Composition ( Al2O3 + SiO2) +ZrO2 ≥95%
Thermal Conductivity (W/mk aversage temperature)
800℃ 0.15
1000℃ 0.21
1200℃ 0.29
Thickness (mm) 3-25
Applications
• Ultra high-temperature sealing materials
• Linings for steel ingot molds and metallurgical furnaces
• Expansion joint sealants under extreme conditions
• Protective wrapping in energy and petrochemical industries
• High-performance insulation for heat treatment equipment
Name Frax 1430Z-FT ( with Zr)
Classify temperature ℃ 1430/1350
/Long time working temperature ℃
Density
kg/m3 180-250
Heat loss ( WT%) ≤10
Linear Shrinkage Rate ≤4
(after 24 hours at classification
temperature)
Tensile Strength (kPa) ≥170
Chemical Composition ( Al2O3 + SiO2) +ZrO2 ≥95%
Thermal Conductivity (W/mk aversage
temperature)
800℃ 0.15
1000℃ 0.21
1200℃
0.29
Thickness 3-25
Thermal Stability at High Temperatures
Low Thermal Conductivity
Low Heat Storage
High Tensile Strength
Thermal Shock Resistance
Contains no Binder
Contains no Asbestos
Easy to Install
No Curing or Dry Out Time Required
- Ultra high-temperature sealing materials
- Linings for steel ingot molds and metallurgical furnaces
- Expansion joint sealants under extreme conditions
- Protective wrapping in energy and petrochemical industries
- High-performance insulation for heat treatment equipment
