AUWIN CMC

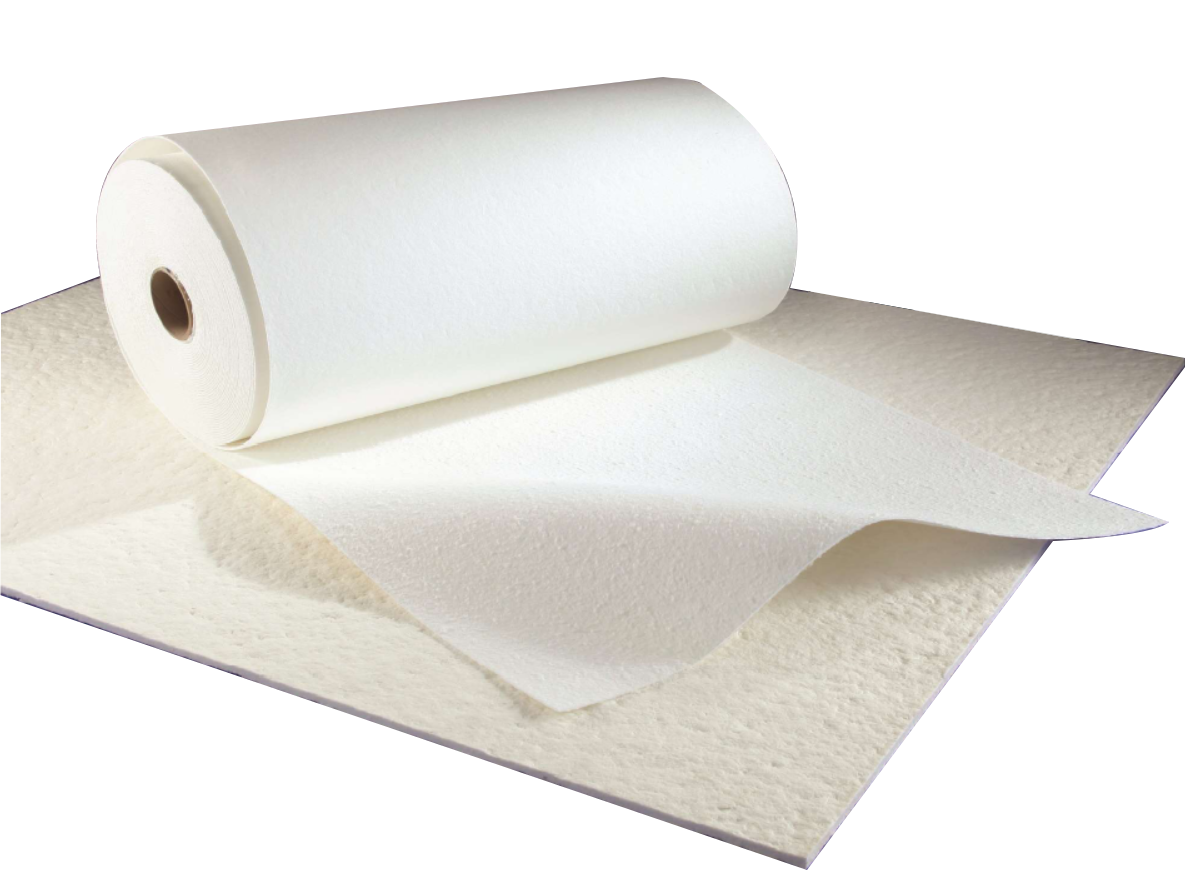

Flexible Ceramic Fiber Felt - Frax 1260LD-FT
Strong,
flexible, and stretch-resistant
High-purity material for extended lifespan
Ideal for applications requiring flexible fitting and sealing
Auwin FRAX ceramic fiber felt is a premium flexible refractory material made from high-purity ceramic fiber wool and carefully selected binders. Using advanced production technology, this flexible insulation offers excellent tensile strength, low thermal conductivity, and stable high-temperature performance.
KEY FEATURES
- Lightweight & Flexible: Low
density (180–220 kg/m³) for easy handling and installation.
- Excellent Thermal Insulation:
Thermal conductivity as low as 0.08 W/m·K at 600 ℃.
- Good High-Temperature Stability:
Continuous working temperature up to 1150 ℃.
- High-Purity Composition: Al₂O₃ + SiO₂ ≥93%, ensuring
consistent performance.
- Easy Processing: Simple to cut, wrap, or conform to complex shapes.
Name: Frax 1260LD-FT ( low density)
Classify temperature ℃ : 1260
Long time working temperature ℃: 1150
Density kg/m3 : 180-220
Heat loss ( WT%) : ≤10
Linear Shrinkage Rate : ≤4
(after 24 hours at classification temperature)
Tensile Strength (kPa) : ≥170
Chemical Composition ( Al2O3 + SiO2) : ≥93%
Thermal Conductivity (W/mk average temperature)
600℃ : 0.08
800℃ : 0.12
1000℃ : 0.16
Thickness （mm） : 3-25
APPLICATIONS
- Flexible high-temperature gaskets
- Insulation wrapping for pipes and ducts
- Expansion joint packing
- Lightweight insulation for industrial furnaces
- Protective high-temperature sealants
Q&A
Q1: What is the maximum use temperature of Frax 1260LD-FT?
A: It can be used continuously up to 1150 ℃.Q2: How does AUFRAX differ from conventional ceramic fiber blankets?
A: Unlike standard blankets, AUFRAX combines flexibility with high tensile strength. It resists tearing during bending or compression and is particularly suitable for sealing and flexible insulation applications.Q3: Is AUFRAX available in different sizes?
A: Yes, thicknesses range from 3–25 mm, with widths of 610 mm and 1220 mm available.Q4: Which industries typically use AUFRAX ceramic fiber felt?
A: It is widely used in steel, metallurgy, energy, petrochemical, and heat treatment industries.
Name Frax 1260LD-FT ( low density)
Classify temperature ℃ 1260/1150
/Long time working temperature ℃
Density kg/m3 180-220
Heat loss ( WT%) ≤10
Linear Shrinkage Rate ≤4
(after 24 hours at classification temperature)
Tensile Strength (kPa) ≥170
Chemical Composition ( Al2O3 + SiO2) ≥93%
Thermal Conductivity (W/mk average temperature)
600℃ 0.08
800℃ 0.12
1000℃ 0.16
Thickness 3-25
Thermal Stability at High Temperatures
Low Thermal Conductivity
Low Heat Storage
High Tensile Strength
Thermal Shock Resistance
Contains no Binder
Contains no Asbestos
Easy to Install
No Curing or Dry Out Time Required
Ladle Covers
Furnace doors, roofs and panels
Flexible high-temperature gaskets
Insulation wrapping for pipes and ducts
Expansion joint packing
Lightweight insulation for industrial furnaces
Protective high-temperature sealants
Any area that requires insulation up to 1260°C
